40 Amp Control Center W/ 1 220V Timer & 1 220V Dual Speed Pump Timer (DS) – T10604R

Top

Product Description

Control Center without Breakers T10000R Series

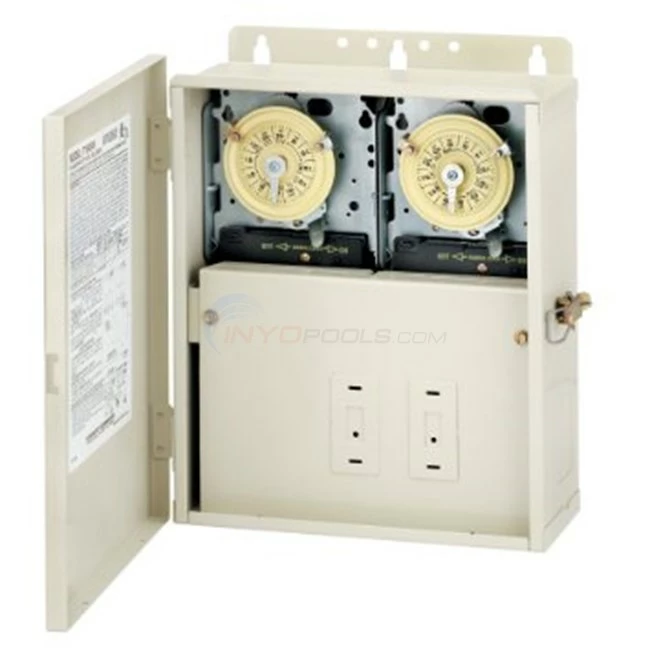

This Control Center features an all-weather enclosure and contains two heavy duty timer mechanisms. In addition, it has provision to install a GFCI receptacle on the side and additional switches inside. The enclosure accepts any combination of T100M, P1000ME, RC2000M or PF1000M Series mechanisms.

Click Here for Installation Guide
Click Here to determine which Intermatic Control Center is right for you

Product Specs

DPST Switch
NEMA 3R Case – 12” (30.5 cm) high x 12″ (30.5 cm) wide x 4-1/4 (10.8 cm) tall
Switch Rating – 40 Amp resistive per pole
Agency Approval – CSA/C-US
Knockouts – Five combination 1/2″-3/4″ and two combination 3/4″-1″ knockouts on the bottom. One combination 1/2″-3/4″ on the
left side and one combination 3/4″-1″ on the back. One knockout 1-3/4″ x 2-3/4″ on the right side for mounting switches or GFCI.

Applications

• Filter Pump-Booster Pump Combination
• Filter Pump-Light Controls
• Pool-Spa Combinations
• Yard Lighting
• Signs

Ordering Information

T10000R Enclosure Only
T10101R Two T101M SPST – SPST 120
T10004R One T104M NA – DPST 208 – 277
T10404R Two T104M DPST – DPST 208 – 277
T10604R* T106M & T104M SPDT – DPST 208 – 277
T12404R T104M201 & T104M DPST –DPST 208 – 277
* For 2 Speed Pump Applications
For additional trippers ( 1 “ON” 1 “OFF” per pack ), order No. 156T1978A
