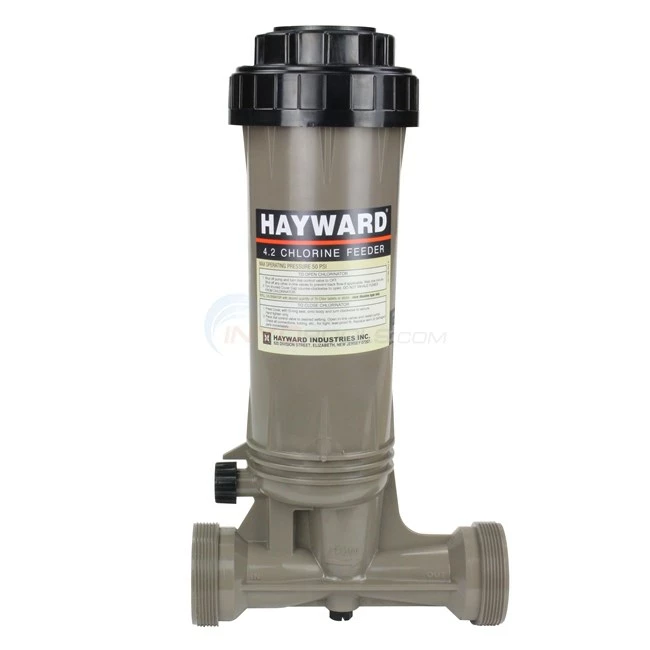

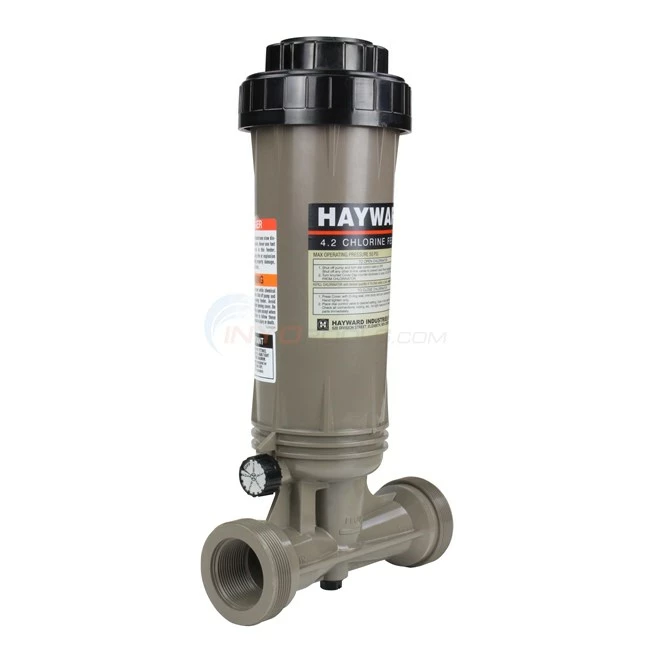

Hayward CL100 In-Line Automatic Chlorinator, Tablet Feeder, 4.2 Lbs. Capacity

Top

Product Description

Automatic Chemical Feeders Efficient and maintenance-free, these durable, corrosion-proof automatic chlorinators and brominators are ideal for new or existing pools or spas and work automatically with your pump and filter system.

Features:

• Uses large or small slow dissolve tablets or sticks
• Dial control valve lets you control and adjust the rate of feed
• Easy-Lok™ threaded cover for safe and convenient access to add tablets or sticks
• Unique finger-release catch provides extra security
• Simple installation for do-it-yourselfers.
• 1 year warranty
• Please note: Unions are sold separately. If you do not have unions from a pre-existing CL100, you can purchase the Union Connector Kit.

Specifications:

• Pipe Size: 1-1/2 in.

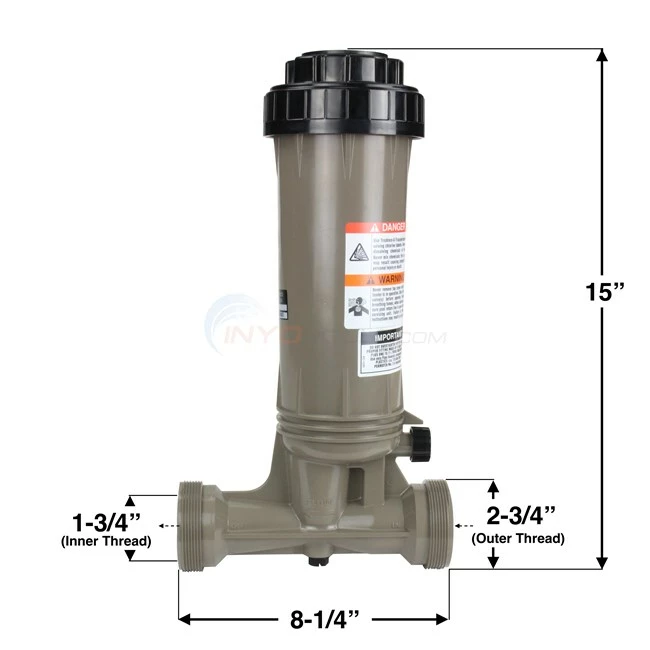

• Dimensions: (W) 8-1/4 in. x (H) 15-1/4 in.
• Weight: 30 lbs.

Flow Ratings: (GPM = Gallons Per Minute)
CL100 – Used with pumps with flow rating of 30-50 GPM
CL200 – Used with pumps with flow rating of 50-80 GPM
CL2002S – Used with pumps with flow rating of 50-90 GPM
CL110 – Used with pumps with flow rating of 30-50 GPM
CL220 – Used with pumps with flow rating of 50-90 GPM

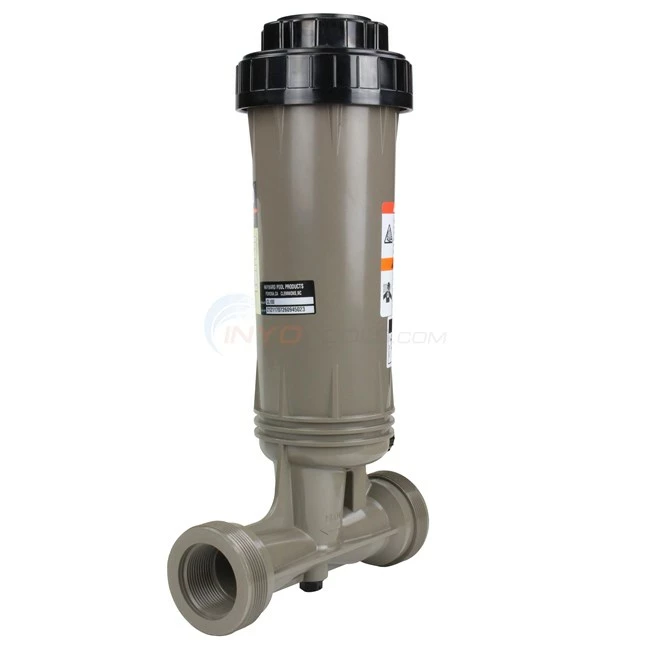

Please note: the chlorinator pictured above is the Hayward CL200. The CL100 has a slightly different body style. For the CL100 diagram, click here.

Miscellaneous Notes

Note:Chemical feeders should always be installed after a pool heater.

CAUTION: Extreme care must be exercised when adding chemicals to your pool. Concentrated chemicals may react violently if they mix in the chemical feeder, causing a fire or explosion, which may result in PROPERTY DAMAGE, PERSONAL INJURY or DEATH.

CAUTION: Never use any petroleum-based lubricants on cover O-Ring. Regular lubrication is necessary to allow for easy cover removal. Use non-petroleum-based lubricants such as Jack’s No. 327 lube or Ivory bar soap.
