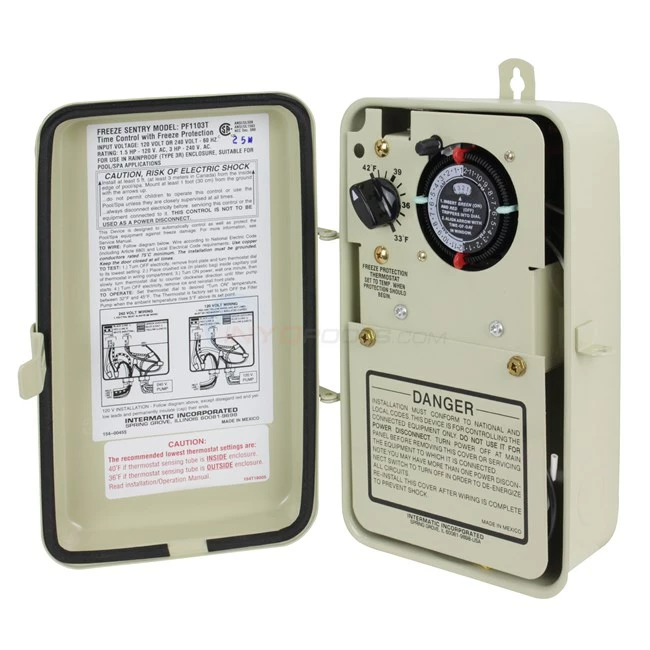

Intermatic Freeze Protect Timer For Pool & Spa 120/240V – PF1103T

Top

Product Description

Single Circuit Freeze Protections Controls
These Freeze Protection Controls are designed to protect the pool and spa equipment and plumbing against freeze damage. They turn ON the pump and the heater when the outdoor temperature drops below the temperature set by the user adjustable thermostat. Models without timer connect to a timing or switching device and together, they control operation of the equipment as well as protect it against freeze damage. Models with timer provide both automation and protection for the equipment. Please note: For 240v, a neutral must be installed for the PF1103T. If no neutral is available, you would need the PF1102T.<

** PLEASE NOTE: If ordered, this mechanism may come with a mechanical timer, not a digital timer as pictured above. Intermatic has changed back to mechanical timer for these freeze protect mechanisms. Inyo Pools does not guarantee which timer type will be shipped. **
Product Specs

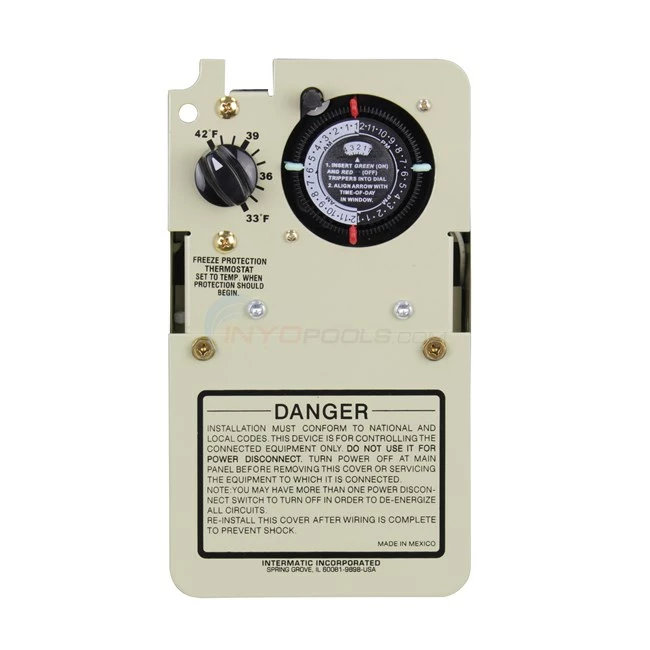

• Timer with Thermostat
• 120/240 V Installation
• 1.5-3 HP Rating
• 45-degrees to 32-degrees with 5 degree differential

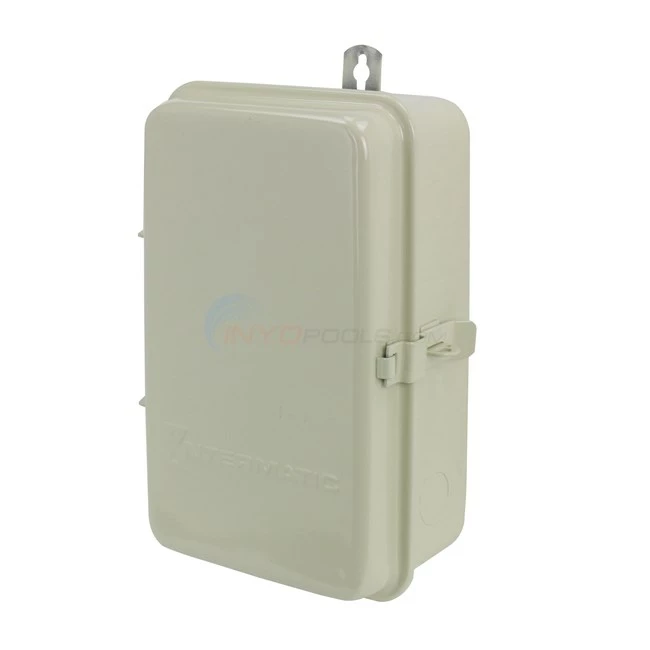

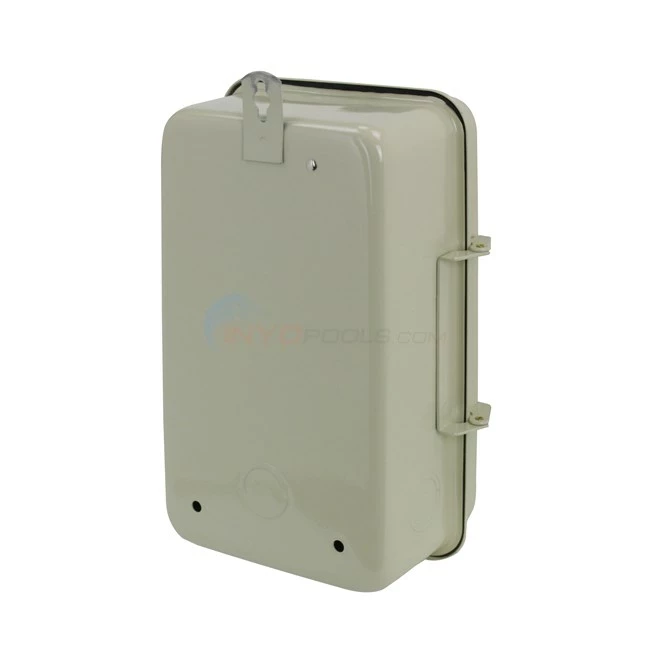

• Casing is 0.034 inchdrawn steel with electronically coated beige coloring.

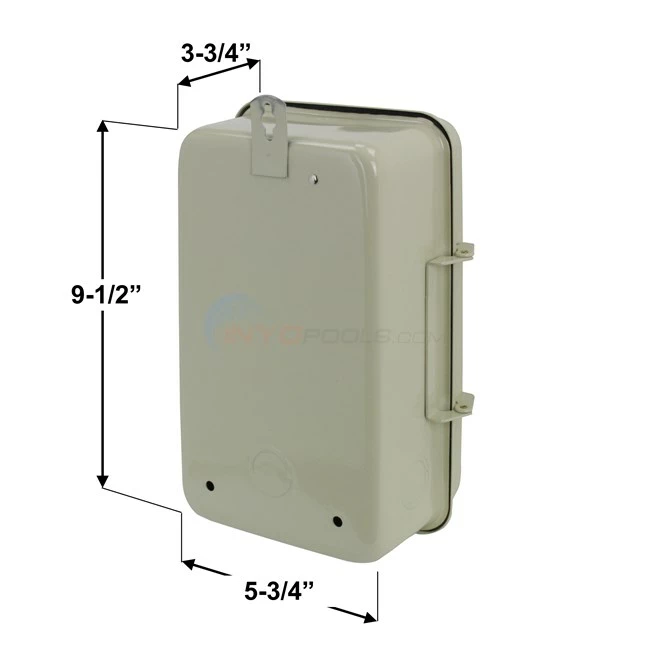

• Case Dimensions: 9-3/8″ High x 5-1/4″ Wide x 3-5/8″ Deep

Applications:
• Filter Pumps
• Filter Pump/Booster Pump Combinations
• Waterfalls
• Water Features

Accessories: 156PB10398A Plastic Tripper
