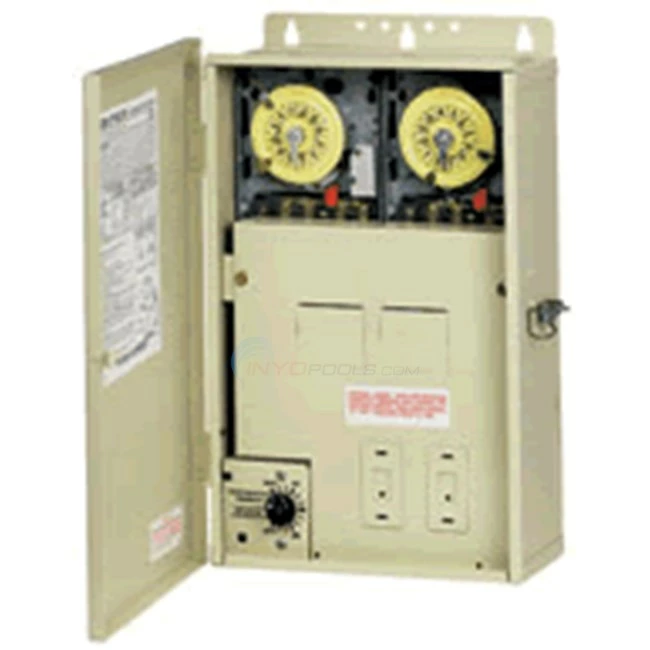

Multi Circuit Freeze Protection Controls PF1222TB1

Top

Product Description

These heavy-duty freeze protection controls are designed specifically for pools requiring one or two time switches as well as freeze protection. In addition, it has a provision to install a switching device or GFCI receptacle on the side of enclosure and additional switching devices inside. The enclosure comes complete with one T104M and one T104M201 mechanical mechanisms and also accepts any combination of T100M, P1000ME, RC2000M or PF1000M Series mechanisms.

Product Specs

• 240 Volt
• DPST Switch
• Case – 16-1/2″ (41.9 cm) high x 10-7/8″ (27.2 cm) wide x 4-1/4″ (10.6 cm) deep
• Switch Rating – 40 Amp resistive
• 3 HP Rating
• Heater Protection (Fireman Switch)
• 45-degrees to 32-degrees with 5-degree differential
• Agency Approval – CSA/C-US

Accessories:

• 156T4042A Intermatic Fireman Heater Switch
• WG1570-10D Motor, Time Clock
• WG1573-10D
• 124T1952 Insulator, Time Switch
• 124T2411A Black Plastic Insulator, Single
• 156T6738A Insulator – Slave (10) per pack
• 156T1978A Two Intermatic Trippers 1 Off & 1 On
• 22T904A Intermatic Back Feed Retainer Kit
