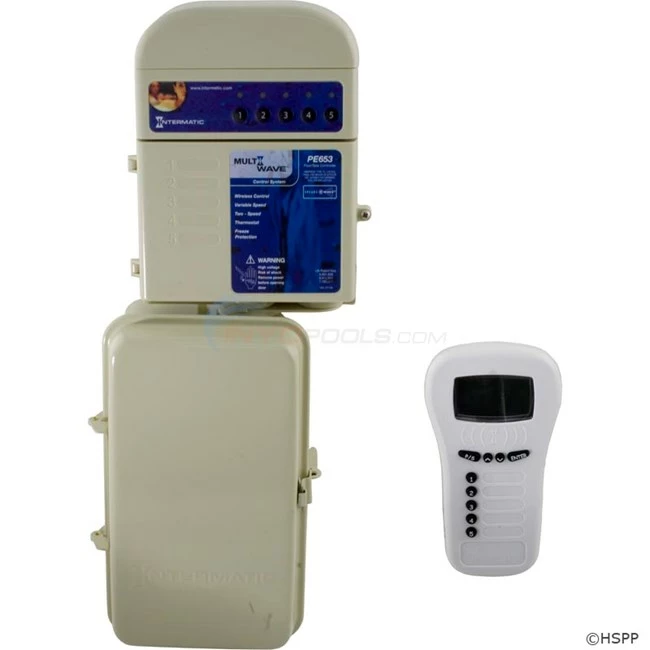

Multi-Wave Control System, Wireless 5 Circ., W/ Remote (PE653RC)

Top

Product Description

The “Multi-Wave” Wireless Control System Controls Pools/Spas and now your Home! Combine the PE653 Multi-Wave Controller with the PE953 Multi-Wave Hand Held Transceiver and automate your pool/spa and even your home with the most technologically advanced wireless control system in the market today!
The Multi-Wave is designed as a “plug and play” system. Install the water sensor PA122 (see page 21) and watch the Multi-Wave thermostat come alive to maintain your pool and/or spa water temperatures. Install the air sensor 178PA28A (see page 21) and let the Multi-Wave freeze protection system take over to protect your investment. Connect your equipment to the intelligent RS485 communication port and relax as the Multi-Wave recognizes and controls your equipment with ease.

Included:

• Owner’s Manual
• Equipment
• Labels
• Three AA Batteries
• Hand Held PE953 Transmitter
• Small Flat Head Screwdriver
• Water Sensor with Hose Clamp
• Receiving PE653 Controller with 2T2485GA Enclosure

Specifications:

Enclosure & Control: NEMA 3R rated for Indoor/Outdoor installation in beige finish 93 /8 in. (23.8 cm) H x 51 /2 in. (14.0 cm) W x 35 /8 in. (9.2 cm) D
Enclosure Knockouts: Combination 1 /2 – 3 /4 in. nominal knockouts, one on back and each side of enclosure and two on bottom
Shipping Weight: 5.4 lbs (2.3 kg)
Agency Approval: CSA/C-US

Ratings:

Control Supply: 120, 240 VAC, 50/60Hz, 5-Watts Maximum
Circuit #1: 20 Amp Resistive (17 FLA, 80 LRA), 120, 240 VAC 50/60 Hz Circuit #2 thru #5: 15 Amp Resistive (10 FLA, 60 LRA), 120, 240 VAC, 50/60 Hz

• PA122             Intermatic Water Temperature Sensor
• PE953             Remote, Wireless Hand-Held Transceiver
• 178PA28A       Intermatic Freeze Protect Probe
• PE24VA           Intermatic Valve Actuator
• PE140             Valve Actuator Control
