Pool Timer Dual Speed Pump Timer – T106R

Top

Product Description

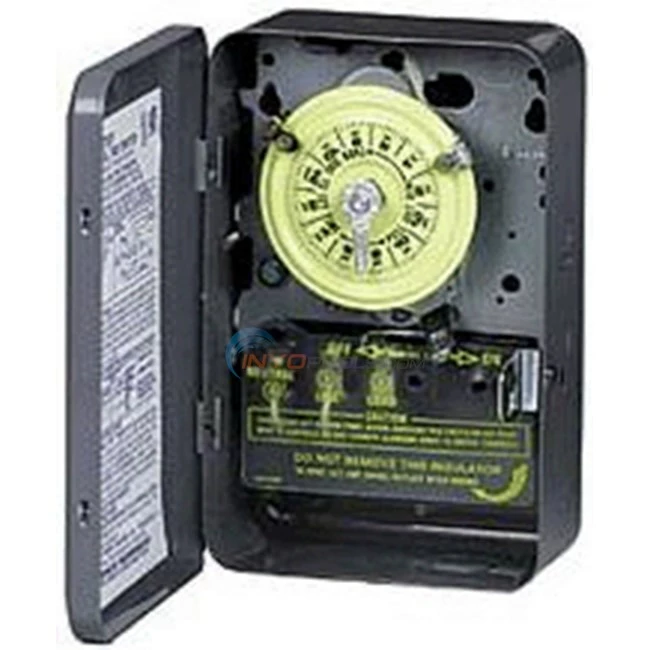

Intermatic timeclock for two speed pumps.

The T106R typically wires into an exsisting pool timer. Your exsisting timer will turn the pump on and off and the T106R will switch from high to low speeds. When wiring this timer up, one leg of the power is always hot to the pump and the other leg goes through the timer. The timer determines whether the second leg goes to the high speed or low speed terminal of the motor. The motor is always on in low speed until the timer kicks it into high speed. When working on the motor, always turn off the main power switch. This timer does NOT turn the pump on and off, it is simply a HIGH-LOW switch. If you want to turn the pump on and off through a timeclock, you also need a T104 timer or purchase a combo timer that has both a T106 and T104 timer in it (T10604R). You would use a normal T104 timer to control the on/off function and then use the T106 two speed timer to control the high/low function of the pump.

Click Here for T10604R timer which will turn your pump on and off and switch your dual speed from the High speed to the Low Speed
